Supernet: What it’s and what it’s for?

A set of computer systems and/or laptop tools linked to one another, and that may alternate information and data, all of these make up a community. The Web is the community of networks. We may even assume that the Web is the “Supernet”, however we’ve to tread fastidiously when utilizing continuously debated phrases in computing… For that purpose, immediately, we convey to the fore the time period “Supernet” (or Supernetwork), in fact at all times taking an strategy from a monitoring perspective.

* Warning: what I write beneath is my manner of taking a look at issues from a sensible and honest standpoint. This text solely endorses me and, in any case, this entry ought to be learn considering the training strategy, it doesn’t intend to be official in any manner. That stated, let’s begin from the fundamentals, which isn’t the identical as ranging from scratch.

Phrases: Supernet and Supernetting

If we’ve a community and we purchase a brand new laptop, we are saying that “we add it to a community.” If we’ve a supernet, then “we add it to a supernet.” We also have a particular verb for it. It is vitally frequent to make use of the time period Supernetting; nonetheless the next phrases are additionally legitimate (however much less used):

Prefix aggregation
Route aggregation
Route summarization

If we get much more particular, technically we are going to discover variations however for the needs of this submit we are going to take care of it the identical manner… Do you assume it’s daring on my half? Nicely, there’s extra!

Request for feedback

Though we are able to go lots additional again in time, the Web was born in america of America, initially referred to as Arpanet, within the late Sixties. A technological predecessor might be the landline from which lots of the ideas are born, used when planning the “community of networks”. In reality, the wiring itself, the colours that determine the pairs, are very comparable, at a bodily or {hardware} degree. This contains the similarities in switched connections (or circuit switching). However, clearly, the Web and information transport in a digital manner ended up fully absorbing telephony.

However the Web wanted greater than the bodily and conceptual basis or sustenance of the nice American phone firms. Furthermore, October 1969 is marked because the start of the Web because the first connection between two computer systems was made… And it was merely that, because it was not but a standard laptop community.

The Web was born, for my part, when pioneer Dr. Steve D. Crocker printed the primary concern of Request for Remark (RFC) on April 7, 1969. In Challenge 6 (RFC 6), Steve Crocker recounts his dialog with Bob Kahn about code conversion for information alternate. RFC 11 publishes the connection implementation within the FAT working system (sure, that’s what it was referred to as), and I fervently imagine that this, printed in August 1969, is what enabled the feat carried out in October of that very same yr.

Based mostly on this data base, the RFCs had been born: gathering a bunch of individuals of their twenties who moved amongst totally different universities sharing data and cementing ideas, one thing that we now do by e-mail… In reality, RFC 733 (1977) outlines this expertise and the usual for the e-mail is printed in RFC 822 (yr 1982).

RFCs grew decade after decade: in 1992, RFC 1338 “Supernetting: an Handle Project and Aggregation Technique” was printed for data functions. Sure, at first the supernet was only a mere commercial, not a protocol, and never even an ordinary.

Simply the next yr, in 1993, RFC 1518 “breaks” the paradigm of networks by lessons. Whereas class A networks permit tens of millions of IP addresses, the subsequent step – class B networks – solely allowed 65 thousand IP addresses: between the 2 of them the “waste” of IP addresses could be very excessive.

For that purpose, the Classless Inter-Area Routing (higher referred to as CIDR) was born, which is an extension of the unique IPv4 addressing system that permits extra environment friendly deal with allocation. The unique class-based methodology used mounted fields for community identifiers, which was wasteful as I stated earlier: most organizations which can be assigned these addresses (class A and sophistication B networks) by no means meant to place so many gadgets on the Web.

As further data, that is the origin of CIDR notation, the suffix that accompanies an IP deal with (there are 32 bits in an IPv4 deal with, 4 octets separated by durations) and that permits describing or narrowing down a spread of them. For instance, for /20 it permits 4096 IP addresses, for /21 2048 IP addresses and so forth, in addition to all the way in which round (all powers of base 2, that is essential for a supernet as we are going to see later). All these numbers may be obtained utilizing the IP deal with calculator included in Pandora FMS. You might also discover many of those calculators on-line, every with its personal model, shapes and colours to current the identical information.

Versatile like Pandora FMS

CIDR thus modified the mounted fields to variable size fields and this allowed to assign IP addresses higher, and in a extra refined manner. CIDR IP addresses embrace a quantity that signifies how the deal with is split between networks and hosts.

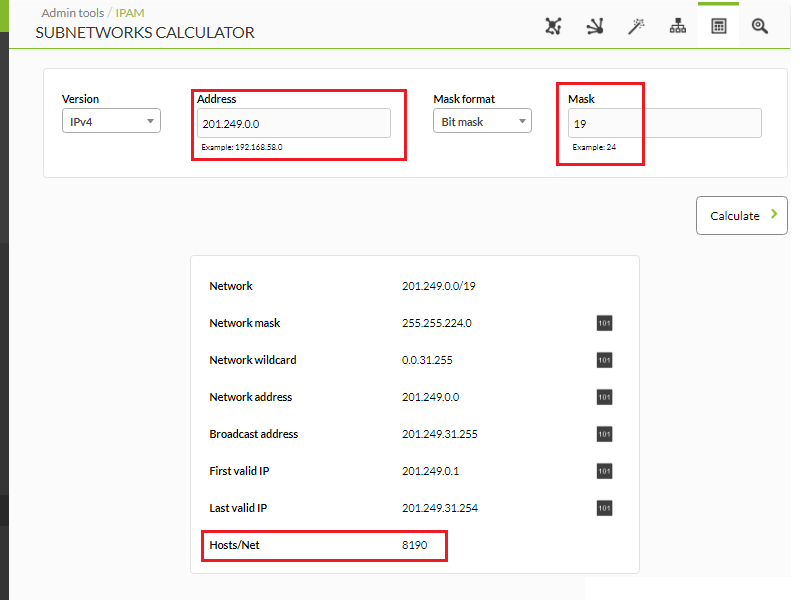

For instance, within the CIDR deal with 201.249.0.0/19 the /19 signifies that the primary 19 bits are used for the identification of the community and the remaining 13 are used for host identification.

The principle goal of a supernet is to lower the dimensions of the route desk of routers. For instance, as a substitute of a router having 8 particular person routes, it might have a single route aggregated from these 8 particular person routes. This protects reminiscence and processing sources on the routing gadgets, thus requiring much less house to retailer their route desk and fewer processing energy to go looking the route desk. It additionally gives stability in networks as a result of fluctuations may be remoted, that’s, in a single a part of the community they don’t unfold to all components of the community.

Supernetting and Pandora FMS

From Pandora FMS model NG 731 IPAM was included (abbreviation of Web Protocol Handle Administration) which permits to handle, uncover, diagnose and monitor a whole bunch of IP addresses.

Inside this characteristic, the supernet, subnets and even digital personal networks (VLAN) are included, all built-in, with the choice to export information in CSV recordsdata. Not like creating VLANs, we are able to solely create supernets manually utilizing IPAM. For that, it’s important to configure, with the mandatory parameters, every of the supernets that you simply wish to have, and later add networks already managed with IPAM which will belong to a VLAN. Though it’s a handbook course of from model NG 758, it contains the flexibility to shortly addy our information from recordsdata in CSV format.

To complete off this submit, let’s see what the foundations that function a supernet are.

Supernet Guidelines

Other than good practices in community configuration, the established guidelines should at all times be adopted and enforced to keep away from chaos reigning.
The foundations for creating supernets are as follows:

Networks have to be contiguous or sequential.
The variety of networks so as to add have to be a a number of of two or “base two”.
And the rule that’s considerably extra sophisticated: evaluate the worth of the primary octet not frequent from the primary block of IP addresses (the smallest) of the listing of networks so as to add in opposition to the variety of networks so as to add (see earlier level). The worth of the primary non-common octet have to be zero or a a number of of the variety of networks to be added.
